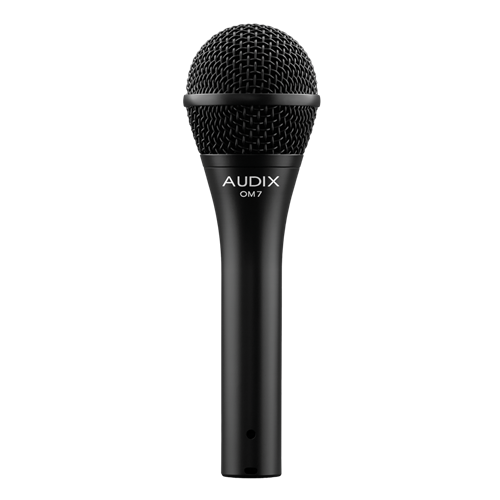

Audix OM7 PROFESSIONAL DYNAMIC VOCAL MICROPHONE

Features
The OM7 vocal dynamic microphone is used by professional sound companies, front of house and mixing engineers as well as high-profile fixed installations. The OM7 provides unprecedented gain before feedback on concert level stages without sacrificing sound quality. In addition, the mic is very resistant to feedback on extremely loud stages and for performers who tend to “cup” the microphone with both hands.

In order to achieve these extraordinary performance benefits, the OM7 dynamic vocal microphone is designed with an unconventionally low output level (8-10 dB lower than typical dynamic microphones). This low output level acts as a natural “pad” at the capsule in order to maintain high fidelity at the source. The OM7 hypercardioid microphone is best suited for use with high-quality mixing consoles that have plenty of headroom to compensate for the low gain.

Designed, assembled, and tested by Audix in the USA.

Specs:

Transducer Type Dynamic

Frequency Response 48 Hz – 19 kHz

Polar Pattern Hypercardioid

Output Impedance 50 ohms

Sensitivity 0.8 mV / Pa @ 1k

Capsule Technology VLM Type C

Off-Axis Rejection >30 dB

Maximum SPL ≥144 dB

Power Requirements None

Connector 3-pin XLRm

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Zinc Alloy / Black Finish

Weight 307 g / 10.8 oz

Length 176 mm / 6.9 in
