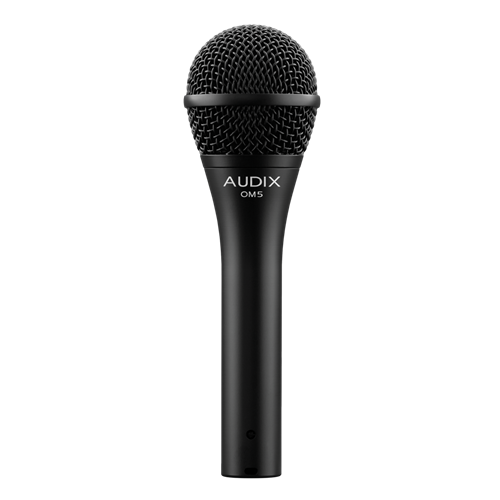

Audix OM5 PROFESSIONAL DYNAMIC VOCAL MICROPHONE

Features
The OM5 vocal dynamic microphone is made with an extremely tight and uniformly controlled hypercardioid polar pattern which isolates the vocals from the rest of the instruments on stage or in a studio.

Used on stage, in studios and for broadcast applications, the OM5 hypercardioid microphone has a reputation for clarity, resistance to feedback, and the ability to handle SPLs in excess of 144 dB without distortion.

The OM5 dynamic vocal microphone is naturally attenuated at 120 Hz to reduce boominess and handling noise. The mid-range is tailored to provide an extra presence in the vocals allowing the vocalist to be easily heard through the main speakers as well as the monitors.

Designed, assembled, and tested by Audix in the USA.

Specs:

Transducer Type Dynamic

Frequency Response 48 Hz – 19 kHz

Polar Pattern Hypercardioid

Output Impedance 200 ohms

Sensitivity 2 mV / Pa @ 1k

Capsule Technology VLM Type C

Off-Axis Rejection >30 dB

Maximum SPL ≥144 dB

Power Requirements None

Connector 3-pin XLRm

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Zinc Alloy / Black Finish

Weight 330 g / 11.6 oz

Length 176 mm / 6.9 in

Model:	OM5
Manufacturer:	Audix
