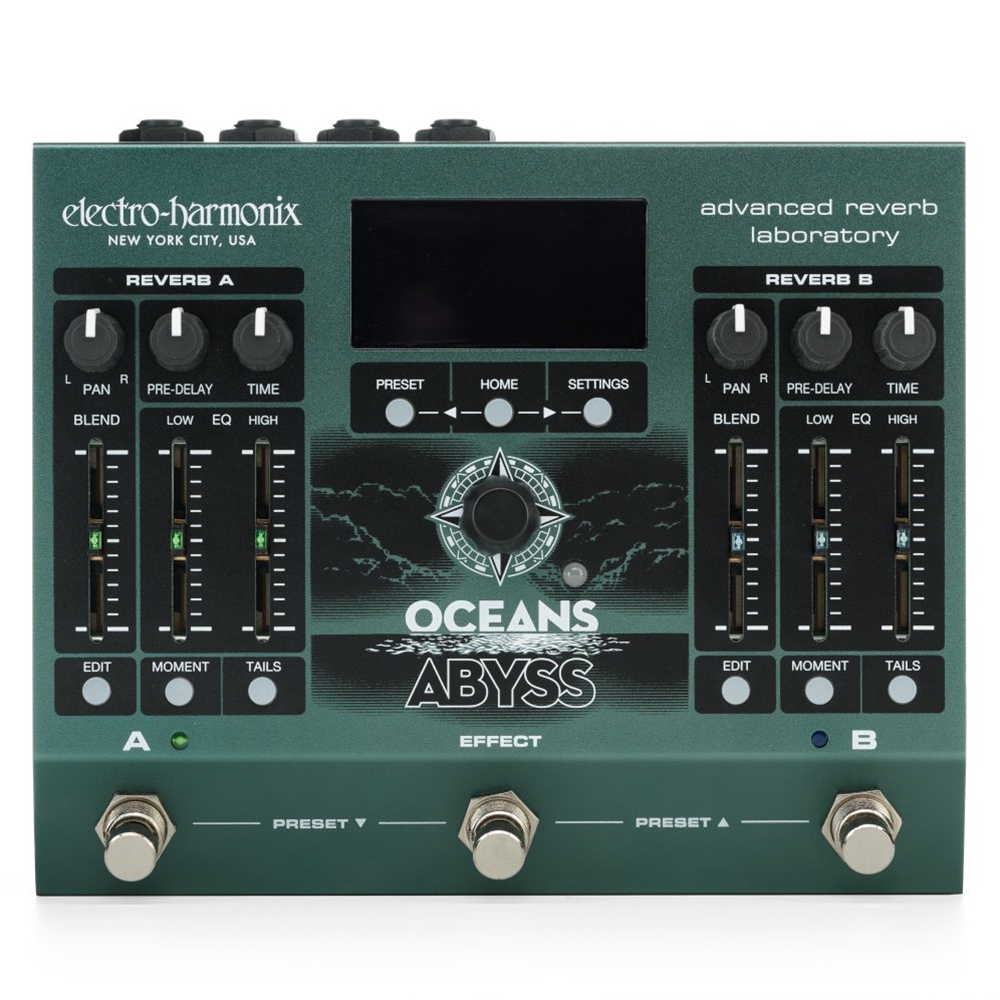

Electro-Harmonix OCEANS ABYSS Advanced Reverb Laboratory Guitar Effects Pedal

Dive deeper into the depths of ambience with the Oceans Abyss Advanced Reverb Laboratory! The Oceans Abyss expands on Electro-Harmonix’s highly acclaimed reverb technology to deliver a truly immersive effects workstation. The pedal is centered around dual reverb engines that are independently programmable with all-new full-stereo algorithms including Hall, Spring, Shimmer and more. Place these reverbs into a customizable signal path with additional FX blocks like Delay, Chorus, Tremolo, or Bit Crusher for a completely unique soundscape building experience. Electro-Harmonix has paved the way for powerful, accessible reverbs since the release of the original Holy Grail and now we’ve pushed the envelope deeper with the fully-equipped Oceans Abyss. Featuring a customizable signal path with up to 8 effects blocks, the Oceans Abyss can be configured as individual reverb, modulation, EQ, delay, bit crusher, saturation or volume effects, or as countless combinations for incredibly creative effect shaping. From a simple Spring reverb to a lush stereo field featuring stereo hall and shimmer reverbs, chorus, delay, overdrive, and tremolo, you can go from surf to shoegaze instantly, without breaking a sweat. Deep parameter editing is accessible via the high-visibility OLED display with multiple graphical views and easy-to-read designs. Expression/CV control over nearly every parameter gives artful control of your effects and dynamics. Fully-stereo I/O plus an FX Loop allows for use with any instrument, recording set up, or live rig.

• Two Stereo Reverbs available at once, each fully pannable in the stereo field
• 10 reverb types to choose from: Room, Hall, Spring, Plate, Reverse, Dynamic, Auto-Infinite, Shimmer, Polyphonic, Resonant. Additional FX blocks: Delay (Digital, Analog and Tape emulations), Tremolo, Chorus, Flanger, Phaser, Graphic EQ, Saturation, Bit Crusher, External FX Loop, Volume
• Create custom signal path routing with up to 8 effects blocks. Two blocks may be re-verb, the rest may be any of the additional FX blocks.
• Infinite reverb sustain with the press of a footswitch
• Stereo Audio I/O
• Stereo FX Loop routing on TRS Jacks
• Dual action footswitches allow for momentary or latching use
• Easily enable or disable tails
• 128 fully customizable presets
• All controls can be saved to presets
• Dive deep into global and preset settings to set up Oceans Abyss for your specific needs
• Illuminated slide pots and buttons
• High-visibility OLED graphical display
• Multiple graphical views: Signal Path, Performance, Settings, Physical, Explorer
• Easy-to-navigate menu system
• Ergonomic NavCoder knob allows rotary and directional navigation through menus
• EXPRESSION / CV input to control nearly any parameter in any FX block
• Footswitch input allows for adding up to three external footswitches, each assignable to a number of functions
• MIDI In and Out. MIDI IN supports PC, CC (over nearly every available parameter), and Tempo Clock
• USB-C port to connect to Windows or Mac and interface with EHXport™ app (coming soon)
• 96kHz / 24-bit sample rate conversion
• Supplied with 9.6VDC / 500mA power supply
• Circuit Digital Bypass
• Buffered Bypass
• Audio Stereo In & Out Power Supply
• 9.6VDC-500mA power adapter included
• Dimensions (in) 7.125 x 5.75 x 2.25
• Current Draw 500mA Year Released 2025
• Owner's Manual Download
